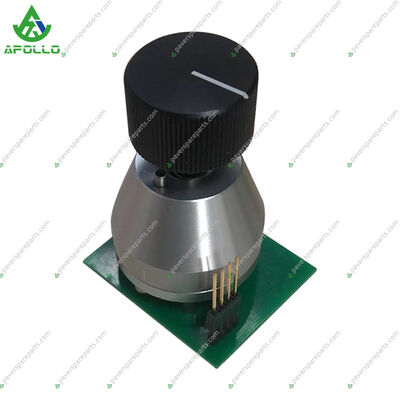

APOLLO S1800-3i Travel Speed Potentiometer Paving Speed Potentiometer for Asphalt Paver Parts

The travel speed potentiometer on the S1800-3i paver is typically mounted on the armrest of the operator's console or on the side panel. Its core function is to control the proportional solenoid valve of the travel pump or the controller by adjusting the output voltage or resistance value, thereby continuously regulating the speed of the track motors.

Technical Features and Functional Logic:

• Working Principle: This is typically a precision multi-turn potentiometer. When the knob is rotated, it outputs a continuous voltage signal, or changes the resistance value. The control system uses this signal to determine the opening of the travel pump solenoid valve, enabling smooth speed adjustment from zero to maximum speed.

• Physical Characteristics:

  • Appearance: Usually features a graduated panel or non-slip knob for easy fine‑adjustment by the operator during paving.

  • Electrical Properties: Typically linear output with a wear‑resistant carbon track to withstand frequent adjustments in harsh job site conditions.

• Common Failure Symptoms:

  • Jerky travel or inability to accelerate: The internal carbon track wears out, causing resistance fluctuations and unstable signals.

  • Automatic drifting: The neutral (center) voltage shifts, resulting in inconsistent speeds between the two tracks, causing the machine to deviate from a straight line.

• Repair and Replacement Reference:

  • Matching: When replacing, pay attention to the original resistance range (e.g., 10kΩ), linearity (B‑curve or S‑curve), and mounting thread size.

  • Calibration: After replacement, a "center calibration" or "full‑scale calibration" is usually required via the display or controller to ensure the knob scale corresponds accurately to the actual travel speed.
