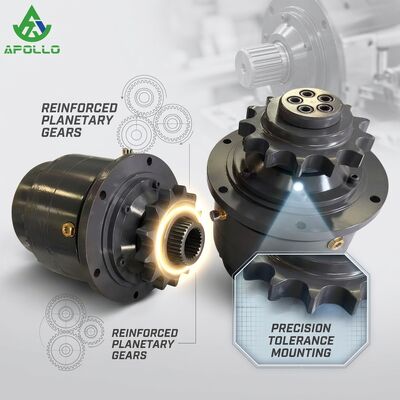

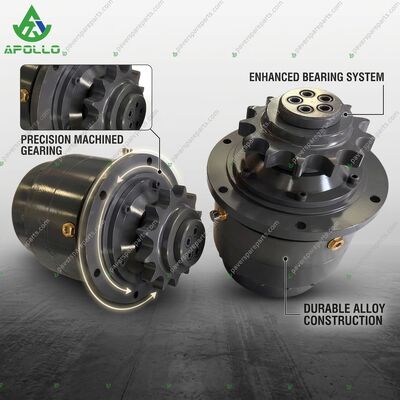

APOLLO Paver Gearbox Reducer 2011672 High Torque Walking Control Unit for S1800-2 Asphalt Paver

This reducer is the power transmission unit on the walking control drive of S1800-2 and S1600-2 asphalt pavers. Reference 2011672 identifies the unit on standard parts lists, and the assembly is interchangeable with 2259433, so a drive that has lost torque or started to leak can be brought back to specification without changing the surrounding mounting hardware.

The unit is built around a compact housing that fits the space available at the drive end of the chassis while still delivering the torque needed for steering and tracking corrections under load. Sealing is the other half of the job: dust, grit and wash water around the undercarriage are what kill gearboxes, so the housing uses sealed joints and a protected output shaft to keep contamination out of the oil.

Walking control demands short, precise movements at low speed and high torque. A worn reducer shows itself as sluggish tracking, drift in a straight line, or noise and heat at the drive end. Because the gearbox sits in the drive chain after the hydraulic motor, a failing unit also loads the motor and the brake, which is why an early swap is cheaper than running a noisy box until something else breaks.

• High torque output matched to the walking drive of S1800-2 / S1600-2 pavers
• Compact cast housing that clears the chassis frame and existing mounting points
• Sealed joints and protected shaft to resist dust, grit and wash-down water
• Interchangeable with reference 2259433 for simplified stock planning
• Serviceable for long operating hours with minimal intervention

Check the reference number cast or stamped on the old housing, note the machine model and the serial range if available, and send a photo of the mounting flange. Slight revisions exist between production batches, and confirming the flange pattern and shaft spline before dispatch avoids a return from the other side of the world. Drain and refill the oil with the specified grade after fitting, and check for leaks after the first shift.

Units are packed in carton and case with pallet support for sea freight. For fleets running several S1800-2 machines, we can plan a rolling stock arrangement so a replacement is already on the shelf when a drive starts to complain. Send the model, reference number and a photo of the flange to start an enquiry.
