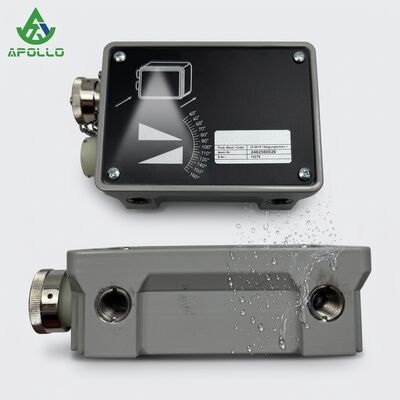

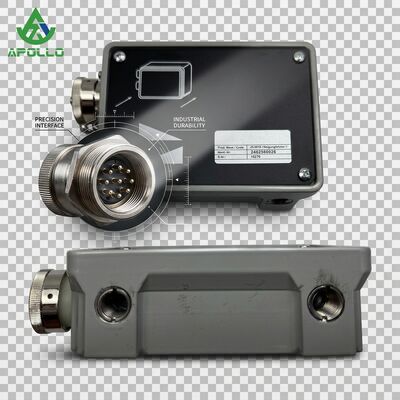

Slope Sensor 2462560026 Pendulum Position Sensor S1800 S1900 S2100 For Asphalt Paver

Cross-slope control is what decides whether water runs off the finished mat or stands on it. This pendulum position sensor is the feedback element in the screed levelling loop: it reads the actual cross-slope, the control console compares that reading with the target value, and the screed tilt is corrected before the error reaches the surface. Supplied as an OEM replacement unit under reference number 2462560026.

• Mechanical pick-up: the pendulum arm follows the tow arm or reference beam, converting ground level variation into shaft rotation.
• Signal conversion: an internal precision potentiometer turns that rotation into a proportional electrical signal, with no drift from dust or vibration.
• Closed-loop correction: the control console compares the live slope reading with the set value and adjusts screed tilt, holding grade without operator input.

Because the sensor is the only measuring point in that loop, a worn or drifting unit shows up as a mat that is fine for a few metres and then waves. Replacing it restores the accuracy the control system was designed around, without touching the rest of the levelling hardware.

Reference number 2462560026, covering S1800, S1900 and S2100 series asphalt paver screed levelling systems. Please confirm your machine model, the sensor mounting orientation and the connector type before ordering, so the unit plugs into the existing harness without adaptation.

Supplied in neutral export carton with part number label only. Send us the machine model, the reference number from the failed sensor and the quantity you need, and we will confirm stock, lead time and freight to your port.
