W2200 Track Roller 2053169 Front Idler Undercarriage Parts for Road Milling Machine

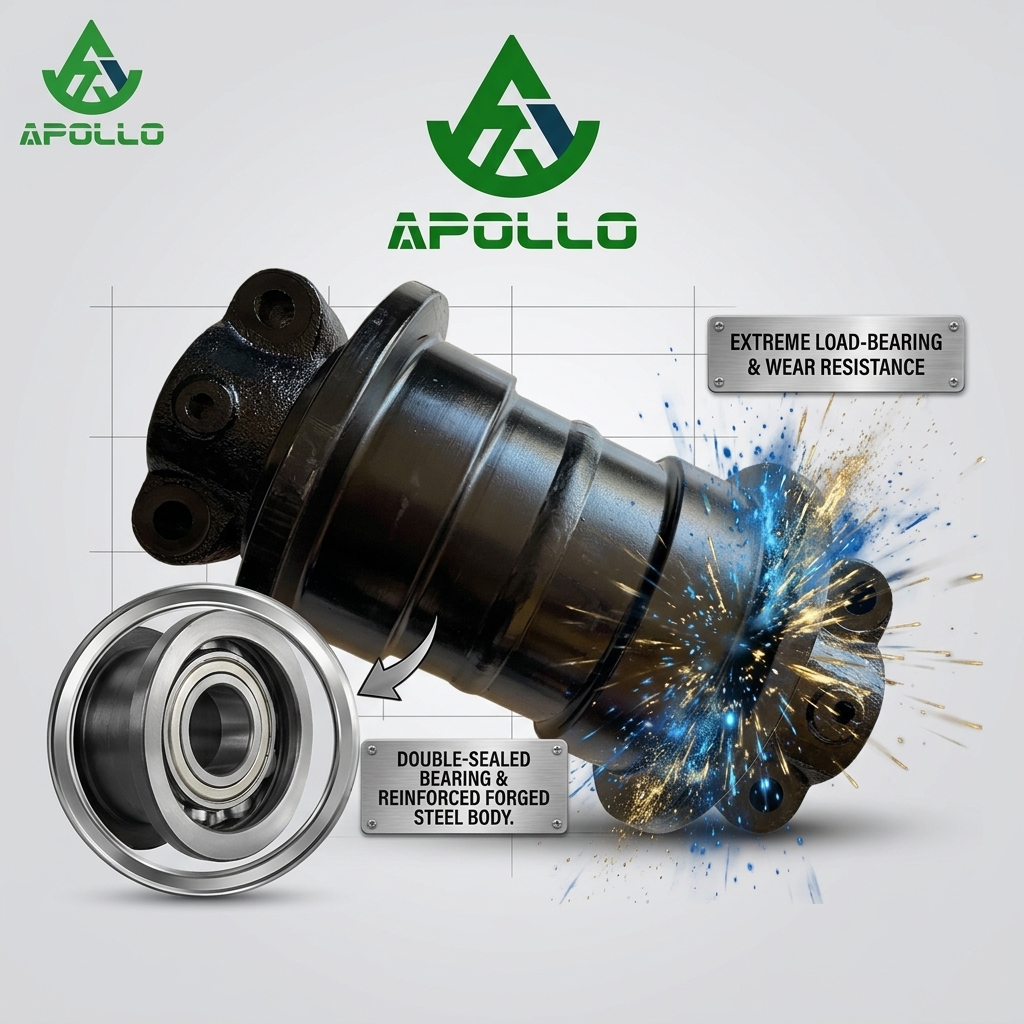

This listing covers the undercarriage wear parts for the W2200 road milling machine: the 2053169 track roller (support / carrier roller) and the matching front idler. Both are the load-bearing components that keep the track chain aligned, carry the machine's weight and absorb the impact of milling at depth.

The track roller supports the chain along the ground run and keeps the shoe faces flat against the cut surface. The front idler sets the chain path at the leading end of the track frame, guiding the chain around the front of the undercarriage and holding tension together with the rear drive. Wear in either component shows up first as chain slap, uneven track tension and a machine that starts to ride rough during travel.

• Abrasive slurry. Milling produces fine dust and water spray that work into the roller seals and idler bearing, cutting seal life far faster than on a paver.
• Impact loading. Cutting at depth transmits shock through the chain into rollers and the idler, which shows up as flat spots, chipped flange edges and seal leakage.
• Misalignment. A worn idler lets the chain drift, so the flanges of every roller take side load and wear faster.
• Chain slap. Loose tension from a worn idler or roller accelerates pin and bushing wear across the whole track group.

• Flange wear approaching the chain link edge, or flange edges chipped and sharp.
• Flat spots on the roller shell, or a roller that no longer turns freely by hand.
• Oil or grease weeping past the seal, with dust build-up around the seal face.
• Chain running off-centre at the front of the track frame, indicating idler wear or bearing play.
• Increasing track noise and slap at travel speed, or repeated tension adjustments.

Rollers and the front idler wear as a group. Replacing one badly worn unit on an otherwise worn track usually transfers load to the newest part and shortens its life, so evaluating the whole undercarriage before ordering avoids repeat labour.

• Block the machine on firm ground and release track tension before removing components.
• Inspect the chain, pins and bushings while the track is slack; worn chain destroys new rollers.
• Clean mounting faces and check bolt holes for elongation before fitting.
• Torque to specification, then set track tension to the manufacturer's value.
• Run the machine slowly and check chain tracking at the idler before returning to milling.

Monthly supply capacity is 1,000 pieces, covering single-unit service orders and undercarriage overhaul programmes. Payment is accepted by L/C or T/T, and goods ship in cartons, cases or on pallets by air or sea freight.

Send the part number 2053169, the machine model and the quantity required, and we will confirm stock, freight cost and shipment date on the same working day.
