Apollo Rubber Pad S700 S800 Paver Rubber Track Pad 2390756 Steel Reinforced Track Shoe Replacement

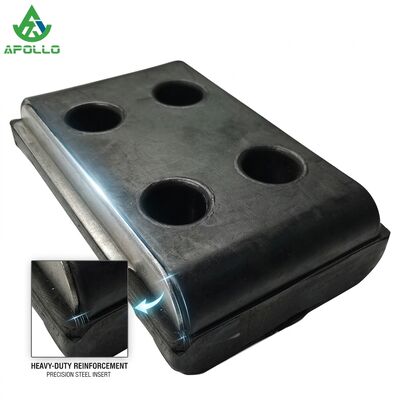

This 2390756 track pad is the rubber-and-steel track shoe used on S700 and S800 asphalt pavers. The rubber block carries the machine's load against the ground while the steel insert holds the bolt pattern and the chain link in shape, so the pad keeps its footprint instead of deforming under load and heat.

Pavers spend their working life crawling over hot mix, kerb lines and compacted base at very low speed with high torque on each shoe. That combination is what separates a service-grade pad from a cheap replacement: the pad has to hold traction on finished asphalt without scuffing it, absorb chain vibration, and still release cleanly from the ground on every rotation.

• Protects the new surface. A rubber footprint spreads load and avoids the steel-scuffing that leaves marks requiring hand finishing behind the paver.

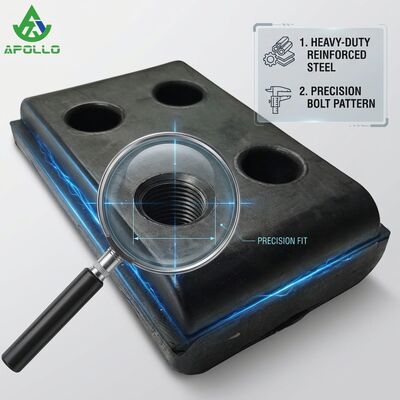

• Holds the bolt pattern. The steel reinforcement keeps bolt holes round and prevents elongation, which is the usual reason pads come loose or start to walk on the chain.
• Dampens chain shock. Rubber between the shoe and the chain absorbs impact and reduces vibration transmitted into the drive, track frame and final drive.
• Keeps grip on the base. Tread geometry gives traction on compacted base and on ramps, where a smooth shoe starts to slip.
• Faster service turnaround. Each pad is a direct bolt-on replacement for the 2390756 position, so worn pads can be swapped one by one or as a set inside a normal service window.

• Rubber worn down to the steel insert, or chunking at the edges of the block.
• Bolt holes elongated, bolts loosening repeatedly, or pads walking sideways on the chain.
• Visible scuff marks on fresh asphalt behind the paver, indicating the steel is contacting the mat.
• Uneven wear across the width of the track, which shows as inconsistent traction on ramps.
• Increased vibration or noise from the track frame at low travel speed.

Replacing pads in sets rather than individually keeps track height consistent. Mixed worn and new pads put extra load on the highest shoes and accelerate the next round of wear.

Monthly supply capacity is 10,000 pieces, covering single-unit service orders and full-track renewal programmes. Payment is accepted by L/C or T/T, and goods ship in boxes or on pallets by air or sea freight according to destination.

Send the part number 2390756, the quantity required per machine or per fleet, and the destination port. We will confirm stock, freight cost and shipment date the same working day.
