2629400 6 Pins Digital Longitudinal Slope Meter Rectangular Wire Connector for SP15 Slipform Paver Leveling

This digital longitudinal slope meter is a replacement sensor for the leveling system of the SP15 slipform paver, referenced under part number 2629400. It measures the machine's longitudinal gradient in real time and feeds the value to the paver control system, which adjusts the screed or mould elevation automatically so that the finished surface follows the design profile.

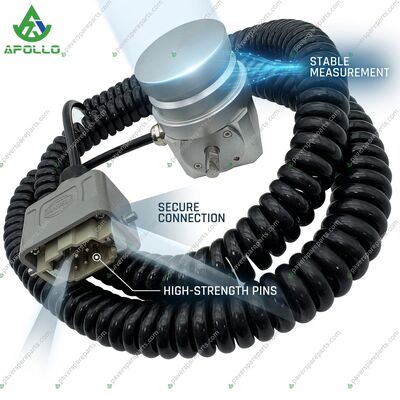

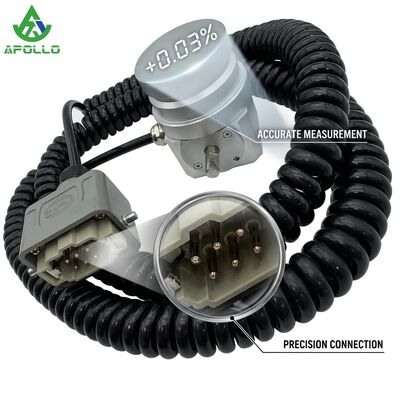

The meter connects through a 6-pin rectangular wire connector, matching the original harness without adapters. Wired, plug-and-play connection is deliberately retained here: on slipform work the sensor sits in dust, vibration and temperature swings, and a mechanically locked connector holds its signal far better than a loose contact arrangement.

• 6-pin rectangular wired connector – plug-and-play fitment with strong interference rejection and stable signal transmission under vibration.
• Digital sensing element – typical measurement error within +/-0.1%, with fast response so gradient changes are corrected while the machine is still moving.
• Direct fitment for SP15 – mounting and connector layout match the paver leveling system, so no bracket or harness modification is needed.
• IP65 sealed housing – protected against water jets and dust, suitable for continuous outdoor construction use.
• Clear readout – digital display for quick slope verification during setup and calibration, with a compact body that is easy to mount and service.
• Long service life – industrial-grade housing and electronics tolerate impact, temperature variation and daily wash-down.

The meter is mounted on the machine frame and continuously reports the longitudinal inclination to the leveling controller. The controller compares the measured value with the target gradient and drives the elevation actuators, closing the loop while paving continues. Because the correction happens in real time, the machine holds grade through transitions and does not rely on the operator watching a reference line.

Typical replacement situations are sensors that have drifted after long service, units damaged by impact or water ingress at the connector, and refurbishment projects where the leveling system is being restored to full automatic operation before a new project starts.

Isolate machine power, release the sensor from its mounting bracket and disconnect the 6-pin plug. Fit the replacement in the same orientation, tighten the fasteners evenly and reconnect the plug until it locks. After power-up, run the leveling system's slope calibration routine on a known reference surface and confirm that the displayed gradient matches the reference without oscillation.

If readings jump after installation, check connector pin condition and cable routing first; a partially seated plug or a cable rubbing on a moving part accounts for most apparent sensor faults.

Each meter is packed in a foam-lined box with an anti-static bag, then shipped in an export carton or on a pallet for bulk orders. Delivery is 7 to 15 working days after payment. Payment terms include T/T and L/C.

The digital longitudinal slope meter 2629400 keeps SP15 slipform pavers on grade with a 6-pin rectangular wired connector, digital accuracy within +/-0.1% and IP65 sealing. It is a practical spare for contractors who need automatic leveling back in service without a dealer lead time.

Send your machine model, quantity and destination port and we will confirm price, lead time and freight cost the same working day.
