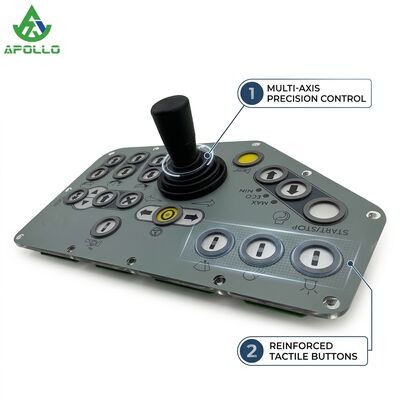

APOLLO 2187484 Main Control Console Steering Control Panel for S1800-3 S1900-3 Asphalt Pavers

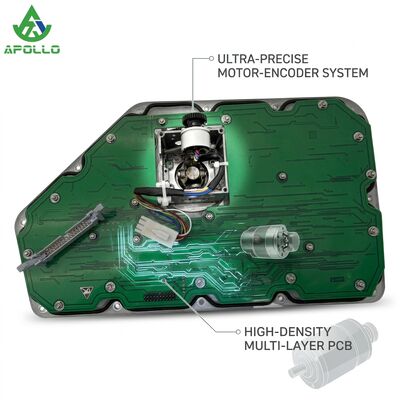

This main control console is a replacement steering control panel for the S1800-3 and S1900-3 asphalt pavers, referenced under part number 2187484. The console carries the steering and machine function controls the operator uses throughout the shift, and is supplied complete with housing, switches and internal circuitry, ready to plug into the existing harness.

Control consoles fail in a predictable way. Switches lose their detent, the panel face cracks around the mounting screws, moisture finds its way behind the membrane and steering response becomes intermittent. Because the console sits at the operator station, a small electrical fault quickly turns into a machine that cannot hold a straight line, and every hour of downtime on a paving train costs far more than the panel itself.

• Direct fitment for S1800-3 and S1900-3 – mounting points, panel dimensions and connector layout match the original console, so no bracket modification is required.
• Complete assembly – supplied with housing, switches, wiring harness and connector, avoiding the need to transfer parts from the failed unit.
• Stable steering response – matched switch contacts and consistent signal output deliver predictable machine reaction across the full steering range.
• Vibration and moisture resistant – sealed housing and industrial-grade components tolerate continuous paving vibration, dust and wash-down.
• Individually tested – each console is checked for switch function and continuity before packing, reducing the risk of a second downtime event.
• Ergonomic layout – control positions follow the original design so operators need no relearning when moving between machines.

The console is the operator's primary interface for machine direction. Steering commands generated at the panel are transmitted to the paver control unit, which drives the steering actuators proportionally, so the machine follows the string line or curb reference smoothly rather than in steps. Because the console also carries travel and function switches, a tired panel affects much more than steering: feed gates, hopper controls and screed functions can all become unreliable.

Typical replacement situations are machines with cracked or UV-degraded panel faces, consoles with intermittent switches after years of dust ingress, and refurbishment projects where the whole operator station is being brought back to working condition before resale or seasonal deployment.

Isolate machine power and disconnect the battery. Remove the fasteners around the console, tilt the unit forward and release the harness connector. Fit the new console on the same mounting points, reconnect the plug until the lock engages and refit the fasteners. Restore power and test steering response in both directions at low travel speed, then check every switch on the panel before returning to production.

If a function remains inactive after fitting, check the connector seating and the relevant fuse before diagnosing a panel fault; partial connector engagement is the most common cause of a seemingly dead switch.

Consoles are packed in a foam-lined carton with an anti-static bag and shipped in export cartons with corner protection to prevent panel damage in transit. Delivery is 3 to 10 working days after payment, and larger quantities are scheduled on confirmation. Payment terms include T/T and L/C.

The APOLLO 2187484 main control console restores reliable steering and machine function control on S1800-3 and S1900-3 asphalt pavers. Supplied as a complete, tested assembly with direct connector fitment, it keeps a paving train working at a fraction of the cost of a dealer-supplied console.

Send your machine model, quantity and destination port and we will confirm price, lead time and freight cost the same working day.
