APOLLO TYP11 Leveling Sensor 14317390 with 6-pin screw thread for Asphalt Paver

1 piece
MOQ
695$/pc
Price
APOLLO TYP11 Leveling Sensor 14317390 with 6-pin screw thread for Asphalt Paver
Features Gallery Product Description Chat Now
Features
Specifications
Features: Durable, Reusable, And Environmentally Friendly
Part Number: 14317390
Machine Model: Asphalt Paver
Material: Plastic/Steel/Metal
Compatibility: Suitable For Various Types Of Pavers
Applicable: Asphalt Paver/Milling Machine/Road Roller
Materials: Special Material
Application: Outdoor Paving Projects
Color: Not Specified
Size: Not Specified
Installation Method: Easy To Use And Install
Highlight:

APOLLO TYP11 asphalt paver sensor

,

6-pin screw thread leveling sensor

,

asphalt paver sensor with warranty
Basic Infomation
Place of Origin: Japan
Brand Name: APOLLO
Payment & Shipping Terms
Packaging Details: Carton/box etc.
Delivery Time: 1-2 weeks after payment
Payment Terms: L/C,T/T
Supply Ability: 1000pcs a month
Product Description
APOLLO TYP11 Leveling Sensor 14317390 with 6-pin Screw Thread for Asphalt Paver
Premium Leveling Sensor for Asphalt Paving Equipment
The Leveling Sensor 14317390 TYP11 is a critical, high-precision component engineered specifically for the demanding environment of asphalt paving equipment. As a 6-pin, screw-thread mounted sensor (Typ 11), it forms the core of the machine's automatic grade and slope control system, ensuring the laid asphalt mat achieves the exactitude required for a smooth, durable, and specification-compliant road surface.
Core Function & Purpose
This sensor acts as the "electronic eye" of the paver's leveling system. It continuously monitors the vertical position of the screed relative to a reference—either a fixed grade wire (stringline) or an existing surface (mobile reference). By providing real-time, high-accuracy positional feedback to the paver's control console, it enables the automatic adjustment of the screed's hydraulic cylinders. This closed-loop control is essential for maintaining constant mat thickness, precise grade, and proper cross-slope, compensating for variations in the base surface.
Key Features & Engineering Highlights
  • High-Precision Measurement: Utilizes robust non-contact sensing technology (typically ultrasonic or laser) to deliver stable, accurate, and repeatable distance measurements. This is fundamental to achieving tight paving tolerances.
  • Robust "Typ 11" Screw-Thread Housing: The defining TYP11 designation refers to its standardized, rugged threaded barrel housing. This design ensures a secure, vibration-resistant, and sealed mounting directly onto the paver's mast or sensor arm, protecting the internal electronics.
  • 6-Pin Electrical Connector: The 6-pin configuration provides the necessary connections for power, ground, signal output (often both analog and digital), and diagnostic communication. This industry-standard interface ensures compatibility with major paver control systems from manufacturers like MOBA, Somero, Sauer-Danfoss, and Topcon.
  • Built for the Job Site: Engineered to withstand the extreme conditions of asphalt paving, including high temperatures, vibrations, dust, moisture ingress, and mechanical shock.
  • OEM-Equivalent Quality (Part # 14317390): Meets or exceeds the original equipment manufacturer's specifications, guaranteeing precise fit, flawless function, and long-term reliability as a direct replacement or upgrade part.
Primary Application
Essential component for the automatic screed control system on all modern asphalt paving machines, from road finishers to highway class pavers. Enables precise grade control (elevation) and slope control (crossfall) in both stringline mode and mobile reference/float mode.
Product Specifications
Product Name Leveling Sensor
Part Number 14317390
MOQ 1pc
Applied to Asphalt paver
Condition 100% New
Brand APOLLO
Installed on Electronic system
Usage Leveling system
Quality High
Product Images

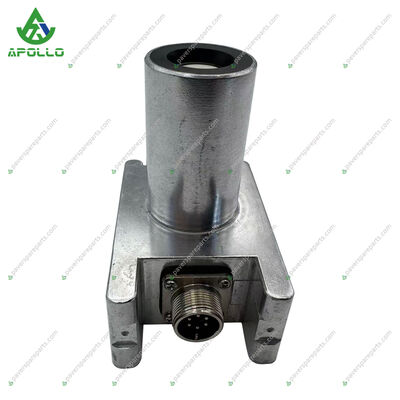

APOLLO TYP11 Leveling Sensor 14317390 with 6-pin screw thread for Asphalt Paver 0
APOLLO TYP11 Leveling Sensor 14317390 with 6-pin screw thread for Asphalt Paver 1
APOLLO TYP11 Leveling Sensor 14317390 with 6-pin screw thread for Asphalt Paver 2
Installation example
APOLLO TYP11 Leveling Sensor 14317390 with 6-pin screw thread for Asphalt Paver 3
Packaged product
